Dock Levellers

Vertical - Dock Levellers - MECHANICAL - ARTICULATED

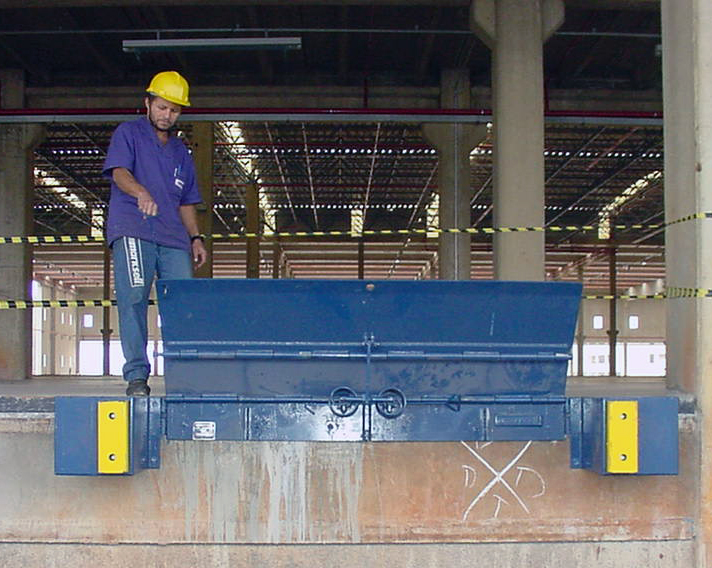

This model is for frontal installation on the dock, fixed with screws with metal plugs. Widely used in sites in which the concrete dock has already been installed, therefore avoiding additional work in preparing the recess

It operates by tilting and manual/mechanical elevating, with a steel cable system and handle; its movement is aided by a set of helical springs.

This is a patented system, that has an articulated plate, of a flange type, with a rotational movement that allows the vehicle to park on the dock before the equipment is put in to operation on the floor of the body of the vehicle.

This model is widely used when there is only a small variation in the height between the dock and the floor of the body of the vehicle.

> Important

You may depend on our Engineering and Commercial Departments to guide you when making the choice of the best solution for your loading and unloading problems.

Please check below the specifications list of the Dock Leveller - MKS PND MFA.

 MKS 6000 PND MFA
Dynamic capacity 6.803kg - 10.000lb
Static capacity 13.607kg - 30.000lb
Length of plate 1000mm - 3,2ft
Width of plate 1850mm - 6ft
 MKS 9000 PND MFA
Dynamic capacity 9.072kg - 20.000lb
Static capacity 18.144kg - 40.000lb
Length of plate 660mm- 2,1ft
Width of plate 1850mm - 6ft
