THE FUTURE OF PLATFORMS IS IN THIS INCREDIBLE EQUIPMENT
TAILIFTS IN STEEL AND ALUMINUM

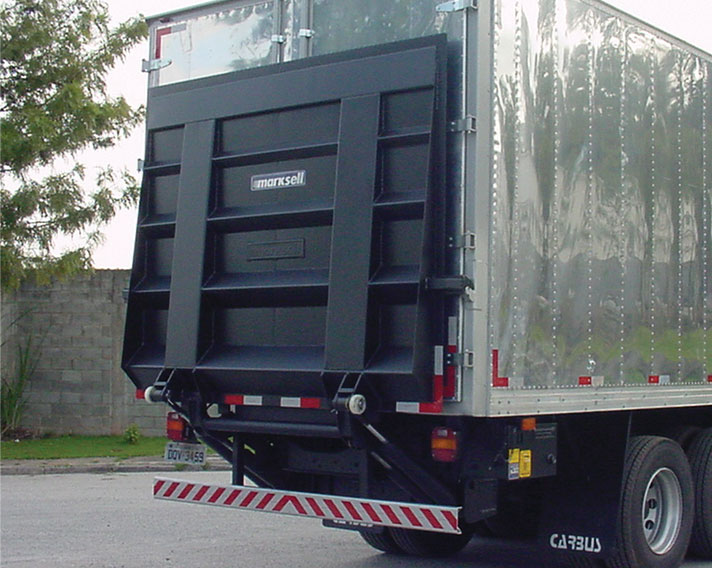

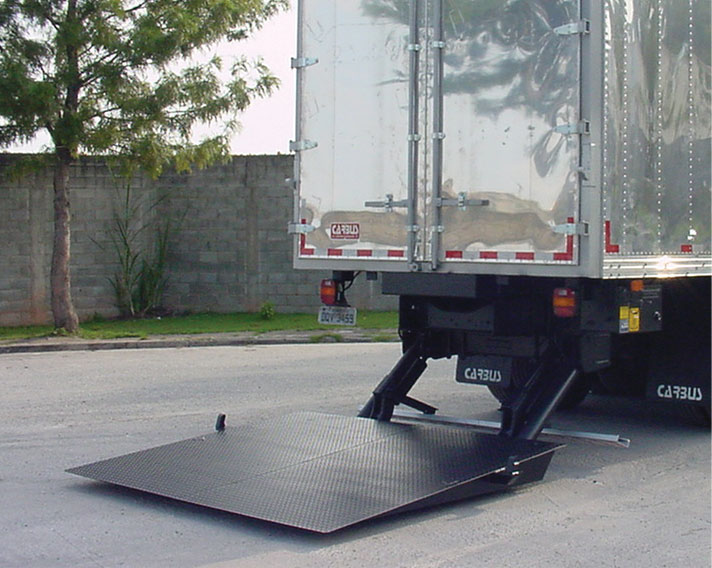

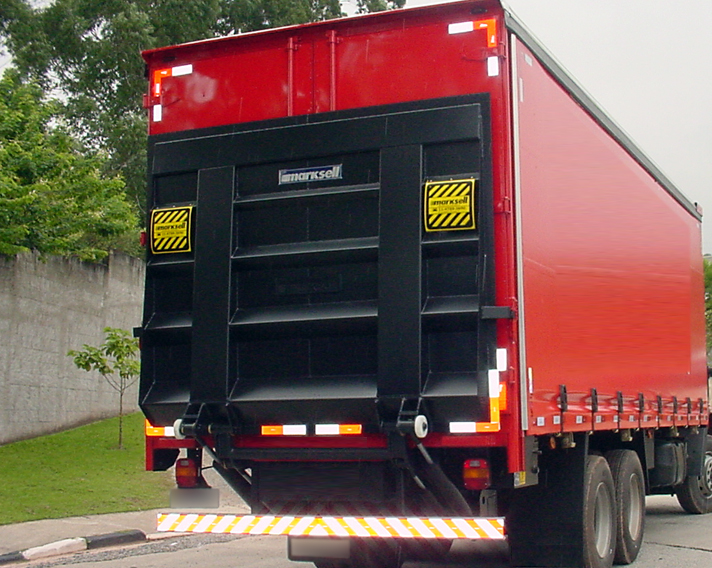

Based on the 2200P4E model, the MKS 2500P4E surpasses the strength and capacity of the 2200P4E version without ignoring the durability and profitability which has made the MKS 2200P4E nthe best-selling equipment in Brazil in recent years. With a larger plate (length of 2000 mm) it has been designed with bearings and cylinders of larger dimensions, enabling the customer to obtain greater profitability from his work.
> Technical Characteristics
• Maximum cargo [kg]: 2500
• Centre of maximum cargo [mm]:1000
• Maximum elevating height [mm]: 1500
• Width of plate [mm]: 2500
• Length of plate [mm]: 2000
• Own weight [kg]: 760
• PBT minimum [kg]: 15000
• Rear space [mm]: 1100
• Traffic capacity [kg]: 3000
• Hydraulic cylinders: 4 Units (2 elevating and 2 inclination)
• Exclusive hydraulic unit
• Button operated (standard) or lever operated (optional)
> Important
Whatever the type of body of the vehicle (open, sider or wagon), semi-trailer (carts), or chassis, the platforms can be easily installed with only a few adjustments made at the time of installation.
