A LIGHTWEIGHT CRANE FOR EFFICIENT SOLUTIONS FOR CARGOS OF UP TO 1000Kg.m
The Crane - MKS Baby 1000, is the most modern solution for moving medium-sized and compact cargos. It can also be offered in in the version MKS Baby 1000Plus which has hydraulic activation of the telescopic boom

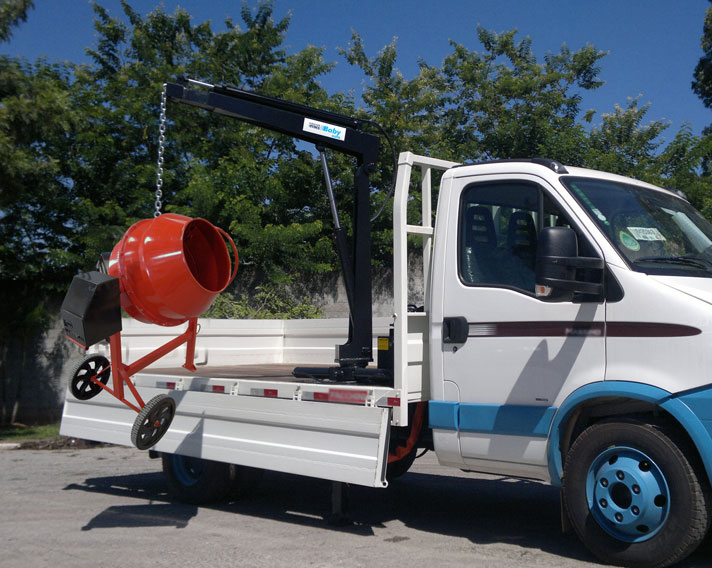

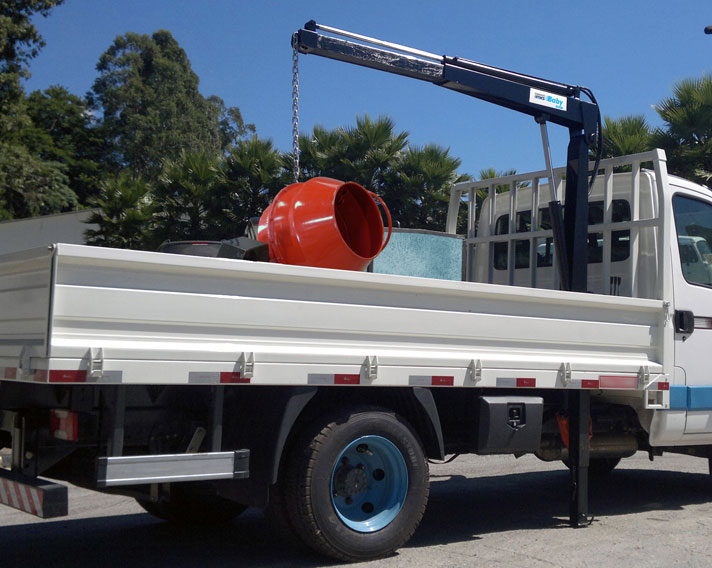

This equipment can be easily installed in the front part or the rear of the bodies of the vehicles of trucks or pick-ups. Installation can also be made on van type vehicles, tractors, and can also remain stationary
The standard equipment possesses an operational hydraulic control of two sections or three sections, including a safety valve that makes the unauthorised use of the equipment more difficult. The structure is made from a high resistant special steel and activation is with a set consisting of a hydraulic pump, cardan shaft and power socket.
> Technical Characteres
• Useful load moment: 1 t.m.
• Cargo Performance x Radius: 1000kg a 1m | 720kg a 1,40m | 550kg a 1,85m
• Horizontal Reach (maximum standard): 1,85m
• Vertical Reach (maximum standard related to ground): 3,75m
• Vertical Reach (maximum standard relating to base): : 2,85m
• Hydraulic Course of the Telescopic Boom (MKS Baby Plus): 0,80m
• Rotating Angle: 360˚
• Maximum Elevating Angle of the Boom: 50˚
• Height in Position of Transport (related to the base):: 1,50m
• Weight of the Equipment (basic): 120kg
• Weight of the Installed Equipment (approximate): 190kg
• Length of the Chain and Hook Set: 1m
